MULTI PFR 12G (POWER FACTOR CONTROLLER 12 STEPS – RS485 BUILT IN)
Product: Power Factor Regulator
Model: MULTI PFR 12G
Description

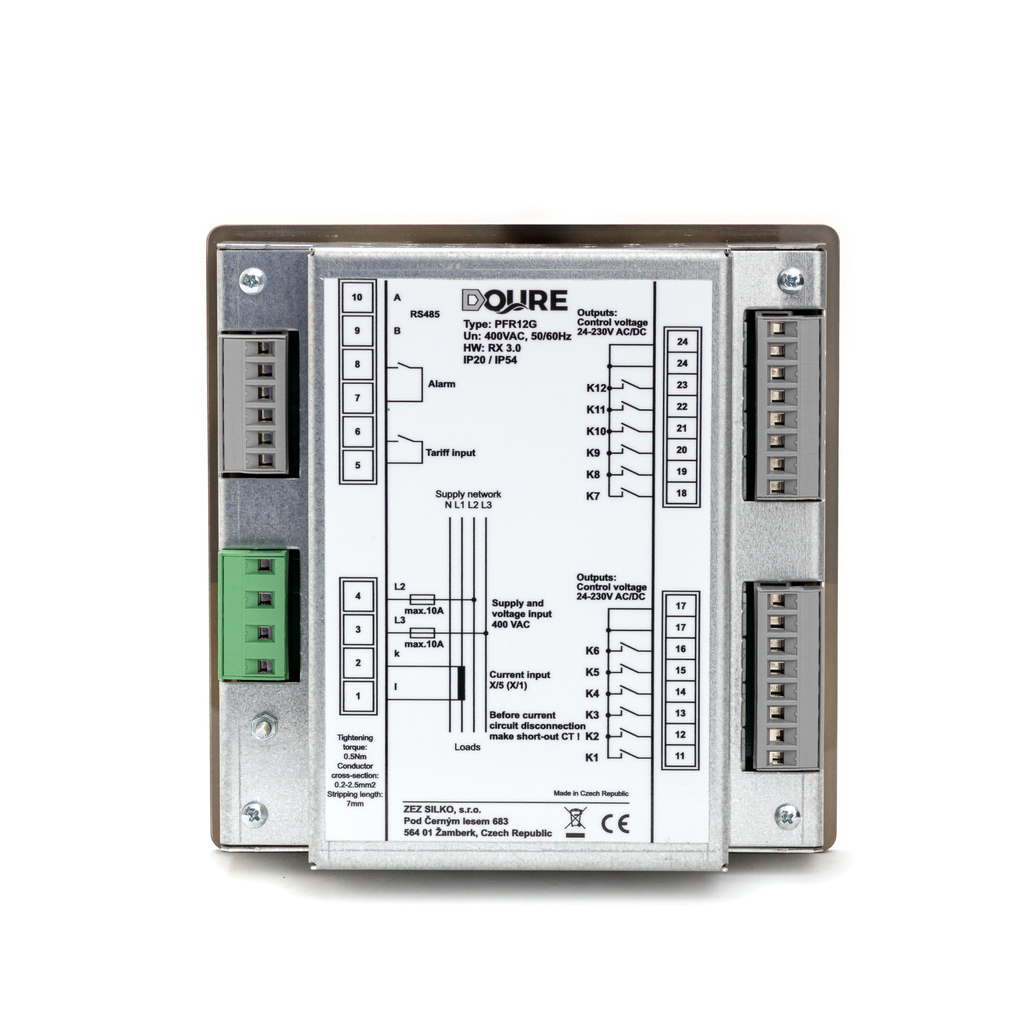

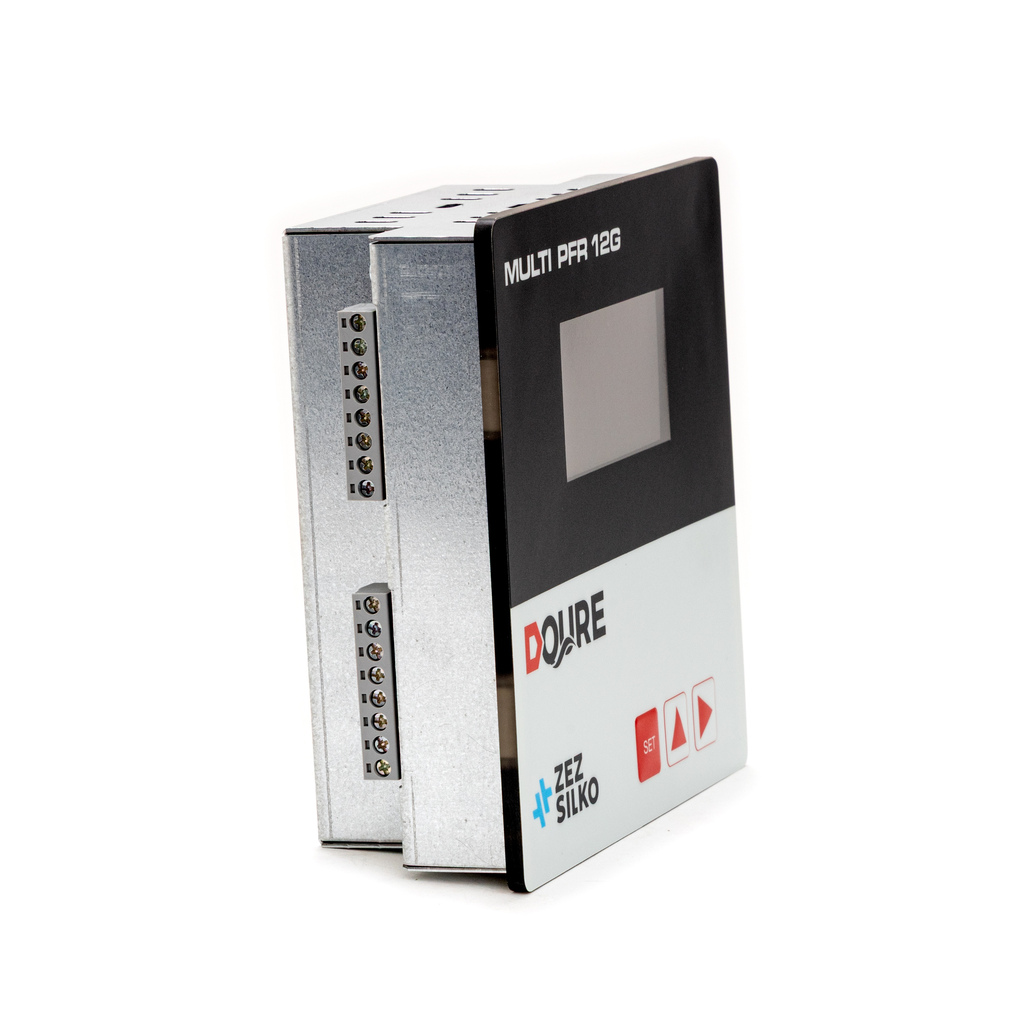

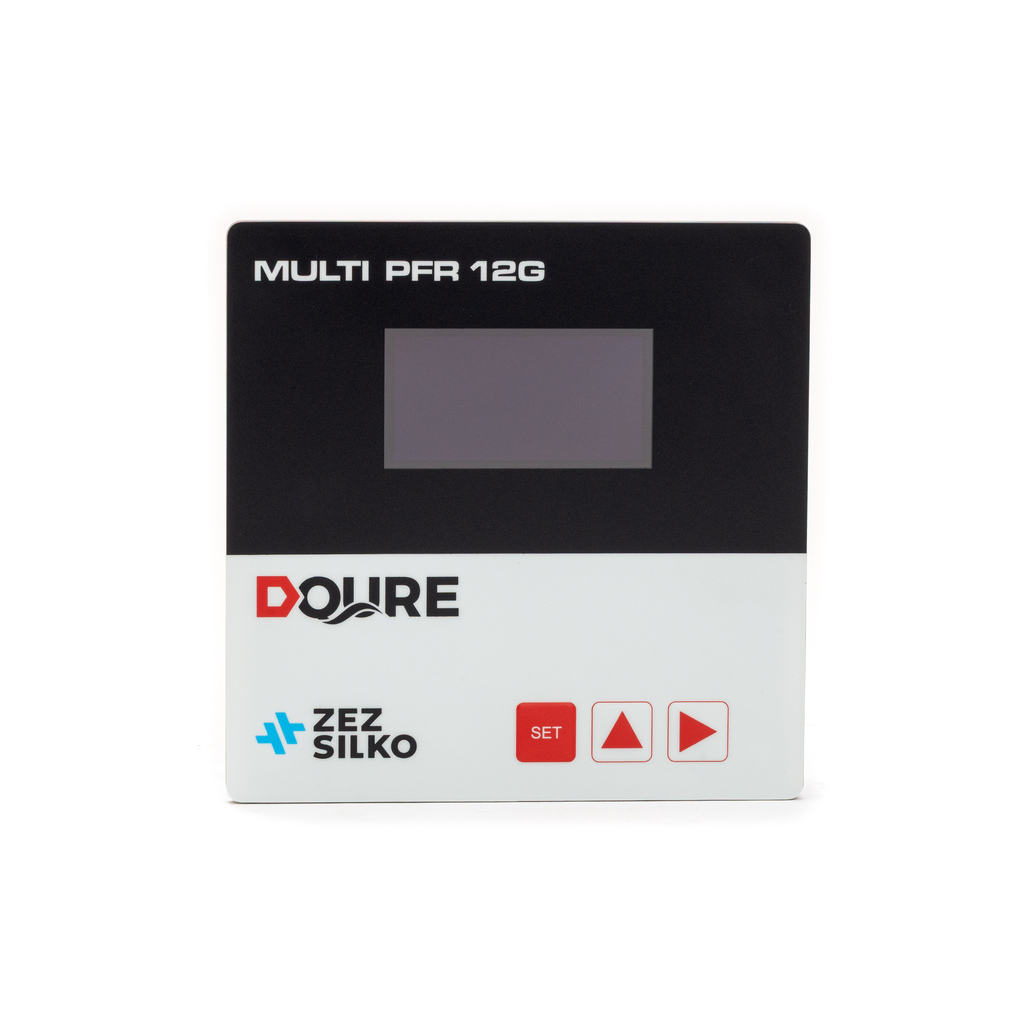

An intelligent power factor controller that serves as the core component for automatic capacitor banks. It automatically manages the engagement and disengagement of capacitor steps to achieve the target power factor. The controller features a clear OLED display for monitoring key electrical parameters, including voltage, current, power, cos phi, individual harmonics up to the 19th order, and temperature via a built-in sensor. It also provides essential protection for the capacitor bank against over-voltage, high harmonic distortion (THD), and over-temperature.
Key Technical Specifications
- Model (Type): MULTI PFR 12G
- Output Channels: 12 relay outputs for capacitor steps + 1 Alarm relay output.
- Display: OLED Display.
- Communication: Built-in RS485 Port (MODBUS RTU protocol).
- Key Measurements: Power Factor, Voltage, Current, Power (Active, Reactive, Apparent), Individual Harmonics (up to 19th), Temperature.
- Protection Functions: Over-voltage, High THD, Over-temperature.
- Switching Strategy: Smart switching algorithm to equalize the usage of steps and select the most appropriate combination.
- Supply Voltage: 400 V AC (+10%, -15%).
- Frequency: 50/60 Hz.
- Standards: EN 61010-1, EN50081-1, EN50082-1.
- Dimensions (Front Panel): 144 x 144 mm.
Manual:
Multi PFR 12GP User and service manual Power factor correction controller
More Details
Technidal parameters
Types
| Supply voltage | 400 V AC (+10%, -15%) |
|---|---|
| Frequency | 50/60 Hz |
| Current Range | 0.003 … 6 A |
| Measurement accuracy of Current input | ± 0.2% |
| Measurement accuracy of Voltage input | ± 0.5% |
| Power Consumption | < 6 VA |
| Output channels | 12 Channels for steps 1 Channel for Alarm |
| Range of Power Factor | 0.8 ind. … 0.8 cap. |
| Communication Port | RS485 |
| Communication Protocol | MODBUS RTU |
| Over-voltage Class | 300V CAT III |
| Temperature limit | -25°C … +70°C |
| Front panel | 144 mm x 144 mm |
| Protection degree | IP20 rear cover / IP54 front panel |
| Standards | EN 61010-1, EN50081-1, EN50082-1 |
